• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models.)
• Audio system feature, speaker system (Includes 4 speakers on Regular Cab and 6 speakers on Extended and Crew Cab Models.)
• Audio system, AM/FM stereo with MP3 compatible CD player, seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume and TheftLock
• Coat hooks, rear driver and passenger side
• Console, overhead deluxe
• Cruise control, electronic with set and resume speed, located on steering wheel
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models.)
• Defogger, rear-window electric (Not available with (A48) power sliding rear window.)
• Door locks, power
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats) (May be substituted with (BG9) Graphite-colored rubberized vinyl floor covering.)
• Headliner, Opal Gray-colored cloth with matching retainer moldings
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Mirror, inside rearview auto-dimming with 8-point compass and outside temperature display
• OnStar Equipped (subscription required)
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt
• Remote vehicle starter prep package, includes Remote Keyless Entry (To enable remote start capability, new key fobs and vehicle reprogramming are required. Please see dealer for details. Remote Keyless Entry does not lock/unlock tailgate when (PDF) EZ-Lift Tailgate Package is ordered.)
• Seat adjuster, manual lumbar control on the driver-side
• Seat trim, Select Cloth
• Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor) (Requires Extended or Crew Cab Models.)
• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining, center fold-down armrest with storage, lockable storage compartment in seat cushion (includes auxiliary power outlet), adjustable outboard head restraints and storage pockets on Extended and Crew Cab models
• Steering wheel, leather-wrapped with theft-deterrent locking feature
• Tire Pressure Monitoring System (does not apply to spare tire)
• Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Windows, power with driver Express-Down

• Alternator, 145 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, front disc/rear drum
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, fully-boxed, hydroformed front section
• Pickup box, Wideside
• Rear wheel drive
• Recovery hooks, front, frame-mounted
• Spare tire lock, keyed cylinder lock that utilizes same key as ignition and door
• Steering, power, rack-and-pinion
• Suspension Package, Handling/Trailering, heavy-duty, includes 46 mm piston monotube shocks and 34mm front stabilizer bar (Includes 36mm front stabilizer bar when (NHT) Max Trailering Pack is ordered.)
• Suspension, front independent, coil over shock
• Suspension, rear 2-stage multi-leaf springs, semi-elliptic
• Tailgate protection, top of tailgate protection cap
• Tire carrier, outside spare, winch-type mounted under frame at rear
• Tools, mechanical jack and wheel wrench located in back of cab
• Wheel, 17" (43.2 cm) steel spare (spare wheel will not cosmetically match the other 4 wheels)

• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Brakes, 4-wheel antilock, front disc/rear drum
• Daytime Running Lamps, with automatic exterior lamp control

AUDIO SYSTEM, AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER

• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• speed-compensated volume and TheftLock (STD)

SLE1 PREFERRED EQUIPMENT GROUP

• includes standard equipment

XM SATELLITE RADIO

• With a wide variety of programming
• XM has something to excite any driver. Whether you want to be entertained or informed
• to laugh
• think
• or sing
• XM has the perfect channel for you-coast-to-coast
• and in digital-quality sound. 3 trial months-no obligation

PAINT, SOLID

• (STD)

SEATS, FRONT 40/20/40 SPLIT-BENCH

• 3-passenger
• driver and front passenger manual reclining
• center fold-down armrest with storage
• lockable storage compartment in seat cushion (includes auxiliary power outlet)
• adjustable outboard head restraints and storage pockets on Extended and Crew Cab models (STD)

EZ-LIFT TAILGATE PACKAGE

• includes (A60) locking tailgate and (PPA) EZ-Lift tailgate

TRANSMISSION, 4-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode (STD)

ENGINE, VORTEC 4.8L V8 SFI (295 HP [220.0 KW] @ 5600 RPM, 305 LB-FT TORQUE [411.8 NM] @ 4800 RPM), IRON BLOCK

• (STD)

SEAT TRIM, SELECT CLOTH

• (STD)

TIRES, P245/70R17 ALL-SEASON, BLACKWALL

• (STD)

SUSPENSION PACKAGE, HANDLING/TRAILERING, HEAVY-DUTY

• includes 46 mm piston monotube shocks and 34mm front stabilizer bar (Includes 36mm front stabilizer bar when (NHT) Max Trailering Pack is ordered.) (STD)

• AUDIO SYSTEM AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER seek-and-scan digital clock auto-tone control Radio Data System (RDS) speed-compensated volume and TheftLock (STD)
• WHEELS 4-17" X 7.5" (43.2 CM X 19.1 CM) 6-LUG ALUMINUM
• SLE1 PREFERRED EQUIPMENT GROUP includes standard equipment
• XM SATELLITE RADIO (subscription required)
• PAINT SOLID (STD)
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-passenger driver and front passenger manual reclining center fold-down armrest with storage lockable storage compartment in seat cushion (includes auxiliary power outlet) adjustable outboard head restraints and storage pockets on Extended and Crew Cab models (STD)
• EZ-LIFT TAILGATE PACKAGE includes (A60) locking tailgate and (PPA) EZ-Lift tailgate
• DIFFERENTIAL HEAVY-DUTY AUTOMATIC LOCKING REAR
• WINDOW POWER REAR SLIDING
• LICENSE PLATE BRACKET FRONT
• TRANSMISSION 4-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode (STD)
• ENGINE VORTEC 4.8L V8 SFI (295 HP [220.0 KW] @ 5600 RPM 305 LB-FT TORQUE [411.8 NM] @ 4800 RPM) IRON BLOCK (STD)
• SEAT TRIM SELECT CLOTH (STD)
• TIRES P245/70R17 ALL-SEASON BLACKWALL (STD)
• REAR AXLE 3.23 RATIO
• GVWR 6800 LBS. (3084 KG)
• SUSPENSION PACKAGE HANDLING/TRAILERING HEAVY-DUTY includes 46 mm piston monotube shocks and 34mm front stabilizer bar (Includes 36mm front stabilizer bar when (NHT) Max Trailering Pack is ordered.) (STD)
• CUSTOMER DIALOGUE NETWORK
• Rear Wheel Drive
• Traction Control
• Stability Control
• Tow Hooks
• Tires - Front All-Season
• Tires - Rear All-Season
• Power Steering
• ABS
• Front Disc/Rear Drum Brakes
• Automatic Headlights
• Fog Lamps
• Daytime Running Lights
• Automatic Headlights
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• Intermittent Wipers
• Split Bench Seat
• Power Outlet
• Driver Adjustable Lumbar
• Rear Bench Seat
• Cloth Seats
• Floor Mats
• Adjustable Steering Wheel
• Leather Steering Wheel
• Steering Wheel Audio Controls
• Tire Pressure Monitor
• Power Door Locks
• Power Windows
• Keyless Entry
• Power Door Locks
• Cruise Control
• Telematics
• Requires Subscription
• A/C
• Rear Defrost
• AM/FM Stereo
• CD Player
• MP3 Capability
• Power Outlet
• Auto-Dimming Rearview Mirror
• Front Reading Lamps
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• ABS
• Front Disc/Rear Drum Brakes
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Traction Control
• Stability Control
• Daytime Running Lights
• Automatic Headlights

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Drum - Rear (Yes or ): Yes
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 21.0
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 53.2
• Tailgate Width (in): 61.6
• Cooling System
• Total Cooling System Capacity (qts): 15.37
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 145
• Exterior Dimensions
• Cab to Axle (in): 32.0
• Front Bumper to Back of Cab (in): 148.9
• Ground Clearance, Front (in): 9.0
• Ground Clearance, Rear (in): 12.3
• Ground to Top of Load Floor (in): 32.9
• Height, Overall (in): 73.8
• Length, Overall w/o rear bumper (in): 229.9
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 47.0
• Wheelbase (in): 143.5
• Width, Max w/o mirrors (in): 80.0
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Interior Dimensions
• Front Head Room (in): 41.5
• Front Hip Room (in): 62.5
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Passenger Capacity: 6
• Second Head Room (in): 40.6
• Second Hip Room (in): 65.5
• Second Leg Room (in): 38.7
• Second Shoulder Room (in): 65.2
• Mileage
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 20
• Steering
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 47.2
• Summary
• Body Code: E63
• Body Style: Crew Cab 5.8' Wideside

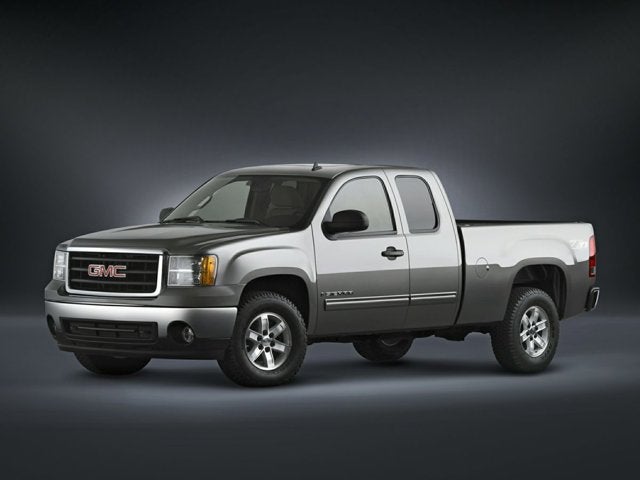

• Vehicle Name: GMC Sierra 1500
• Suspension
• Axle Capacity - Front (lbs): 3650
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Rear: 3.23
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 46
• Spring Capacity - Front (lbs): 3650
• Spring Capacity - Rear (lbs): 3950
• Stabilizer Bar Diameter - Front (in): 1.34
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-stage multi-leaf
• Tires
• Front Tire Capacity (lbs): 2004
• Front Tire Order Code: QPR
• Front Tire Size: P245/70R17
• Rear Tire Capacity (lbs): 2004
• Rear Tire Order Code: QPR
• Rear Tire Size: P245/70R17
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: QPR
• Spare Tire Size: P245/70R17
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 460
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4600
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 690
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4600
• Weight Information
• Curb Weight - Front (lbs): 2937
• Curb Weight - Rear (lbs): 2077
• Gross Axle Wt Rating - Front (lbs): 3650
• Gross Axle Wt Rating - Rear (lbs): 3950
• Gross Combined Wt Rating (lbs): 10000
• Gross Vehicle Weight Rating Cap (lbs): 6800
• Wheels
• Front Wheel Material: Aluminum
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Material: Aluminum
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 17 x
